Double axis wood furniture chair legs carving wood turning CNC lathe machine

FOB Reference Price:Get Latest Price
US $5,200-6,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
TianJiao
Model Number:
TJ1516
Voltage:
AC380V/50Hz
Power(W):
4kw
Weight:
1600kgs
Dimension(L*W*H):
300*100*150cm
Certification:
CE
Warranty:
one year
After-sales Service Provided:
Engineers available to service machinery overseas
Max.processing length:
1500mm
Max. turning diameter:
160mm for double axis work
machine lathe body:
cast iron( more stable, not easy to destroy)
painting method:
power coating
XZ axis transmission:
ballscrew
Y axis transmission way:
helical gear
orbit:
real Taiwan Hiwin orbit
control system:
DSP control system
motor and driver:
large step motor and driver
Product name:
Cnc Wood Lathe
Packaging & Delivery
Packaging Details
fumigation-free wooden case
packing size:3.1*1.2*1.6m
20 feet container can contain 4 sets if without package
40 feet container can contain 8 sets if without package
Port
Qingdao,China
Lead Time :
7-10 days


Wood Lathe/CNC Wood Turning Lathe Manufacturers/Mini Wood Turning Lathes

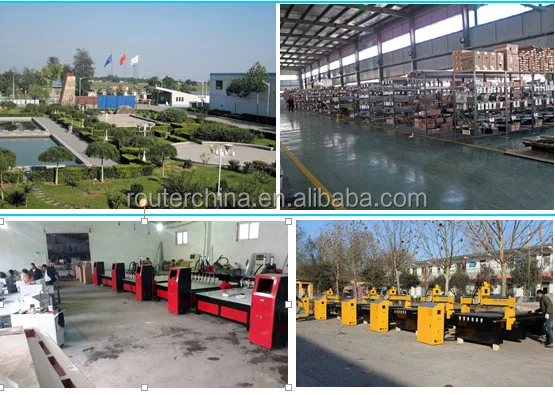

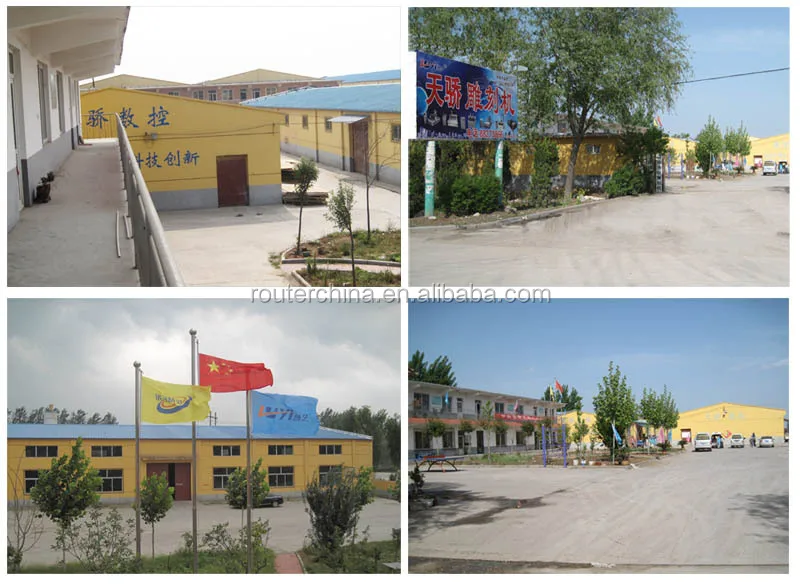

Company Information
Jinan Tian Jiao Machinery Manufacture Co.,Ltd. is specialized in developing and manufacturing Mechanical CNC router (woodworking router, advertising router, stone engraving router), CNC Laser machine, Plasma cutting machine, cutting plotters, metal mould engraving machine and other cnc machines. We supply global market the high quality CNC equipments. We are leading company in this field and being confident in offerring the best service and best quality.
  wood lathe/cnc wood turning lathe manufacturers/mini wood turning lathes

Product Description

1. Applications



Staircases,stairway balusters,stairway newel posts;dining table legs;end table legs;

sofa table legs;bar stool legs;chair legs;chair arm posts;chair stretchers;sofa and

bun feet;bed rails;lamp posts;baseball bats and so on.



Machine picture



2. Features



Wood lathe is a device that can create items such as stairway posts,designs on wood,

and more.

A CNC wood lathe is operated by a computer which is controlled by the user.

The use of computers on a lathe machine offers a wide range of benefits and

features,while improving functionality.

Lathe machine is designed for cylindrical or conoid workpieces,for example pillar,

banister,chair legs,etc.

All lathes work the same way.



3.Parameters:



Cnc wood lathe TJ1516 double axis double knife

     Item

                   Specifications

Max processing length



1500mm(can custom 2000/2500/3000mm)

Max turning diameter

Double shaft use max 160mm

Single shaft use max 320mm

Air pressure

0.6-0.8Mpa

Powersupply

AC 380V 3 phase 50HZ/60HZ(can custom 220V)

Max feed rate

200cm/min



min setting unit

0.01cm

Transimission type

ballscrew for X Z axis,gear for Y axis

Guider

Taiwan Hiwin orbit

Main shaft rotating speed

0-3000r/min



Motor power

4kw

Spindle motor

3.5kw air cooling spindle

Cutter material

Super hard alloy

Control System

DSP control system

Motor

Stepper motor

Driver

Yako driver

Inverter

Best inverter

Drawing Software

AutoCAD

Hand controller recognise file format

*.dxf

Machine size

3*1*1.4m

Packing size

3.1*1.2*1.6

N.W

1500kg

G.W

1600kg

4.Samples:



5. Machine main parts

6. Videos link:



https://youtu.be/_YoHb-NvuwM



https://youtu.be/LX7TUKc0fpQ



https://youtu.be/AcO_Gh6Oj7k



https://youtu.be/tNHQ9325YQ8



https://www.youtube.com/watch?v=WyZY_vwguXg



https://youtu.be/VZaFXQxvCiE





7. Customers Visit And Exhibition:








Packaging & Shipping







Inside Packing

  • Use professional Stretch Film to cover the whole lathe.
  • Stretch film package with foam protection in each corner.

Outside Packing

  • Sandard export wooden cases and pylwood cases.
  • Save space as much as possible for container loading.

Transport

  • We support shipping, air, land and express.
  • You can choose the most suitable way of transport.

If you have any special request for packing, we can do it.



Our Services







Pre-sale service



  • We offer free detailed quotation and product description.
  • 24 hours online consultation.
  • Patient introduce and professional suggest buying selection.

  • Take pictures and make videoes with your done machine.

  • Strict test and debug machine quality before shipping.



After-sale service



  • To provide clients with all aspects of after-sales service.
  • Our company promises:
    One year free warranty for the whole machine , lifelong maintenance.
    Customer response service time within 12 hours.
    After the expiry of the warranty , we continue supply life-long maintenance services.
    After the expiry of the warranty , still to provide a wide range of software and hardware support ,
    enjoy free lifelong upgrades . And supply the parts at agent price.



Warranty



  • The engineers of the original factory are available to do all kinds of the original factory are available to do all kinds of oversea machinery service. In some countries, we have oversea agents doing after-sale service in time and professionally.
  • we also  offer 24 hours heart to heart service on-line or mobile.
  • Your technologists could attend the training in our factory and on-line which be free of charge.
  • The warranty of CNC lathe  is 12 months, small broken parts could be freely replaced at any time, spare parts are delivered with machine for customer convenience.
  • We offer you best agent price and distributer price for our further cooperation. .
  • we can offer special custom-made according to your request.



Contact Us

Thank you for scaning our high quality products, your feedback are highly appreciated, looking forward to receiving your inquiry, thanks again.







We also welcome you to our factory for visiting,and the visiting lines as below:



Factory exact address:
Licheng District,Fujia Industrial Area, Yuhua 8th Rd.,Jinan City,Shandong Province,China.



1.By air to BEIJING International Airport, JINAN or QINGDAO Airport of Shandong,China.

2.By high-speed train to Qingdao or JINAN Railway station of Shandong Province,China.
